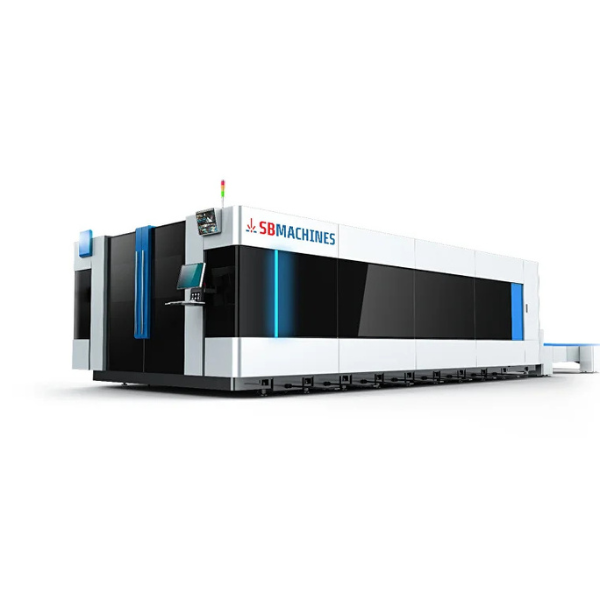

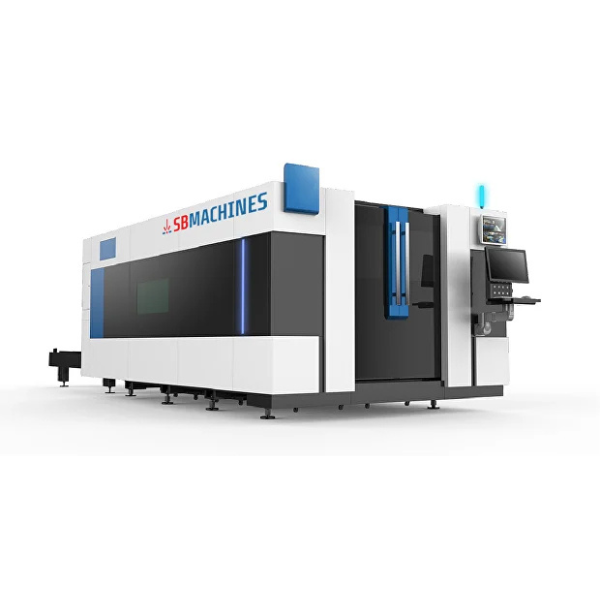

SD Series

High power high-speed sheet double table laser cutting machine up to 80 kW.

Get the benefits of high power cutting – reduce your cutting time and improve productivity.

High precision parts: reducer, rack and pinion, linear guides.

High power drivers.

Intelligent process system, one button operation, improve processing efficiency.

Automatic edge finding, intelligent piercing, cutting detection, senseless cutting, obstacle avoidance.

Options: bevel head, hydraulic table lifting system.

Category: Sheet Lasers

Description

Item	SD-3015	SD-4020	SD-6025	SD-8025
Sheet size, mm	3000×1500	4000×2000	6000×2500	8000×2500
X Y axis positioning speed,m/min	180	180	180	180
X Y max acceleration,G	2(2,5option)	2(2,5option)	2(2,5option)	2(2,5option)
X Y positioning accuracy,mm/m	0,03	0,03	0,03	0,03
X Y re-positioning accuracy,mm	0,03	0,03	0,03	0,03
Laser source	IPG/Raycus/	SBMachines	3 – 80 kW
Cutting gases	Air, N2, O2

Item	SD-10025	SD-12025	SD-12526	SD-13030
Sheet size, mm	10000×2500	12000×2500	12000×2600	13000×3100
X Y axis positioning speed,m/min	180	180	180	180
X Y max acceleration,G	2	2	2	2
X Y positioning accuracy,mm/m	0,05	0,05	0,05	0,05
X Y re-positioning accuracy,mm	0,03	0,03	0,03	0,03
Laser source	IPG/Raycus/	SBMachines	3 – 80 kW
Cutting gases	Air, N2, O2
