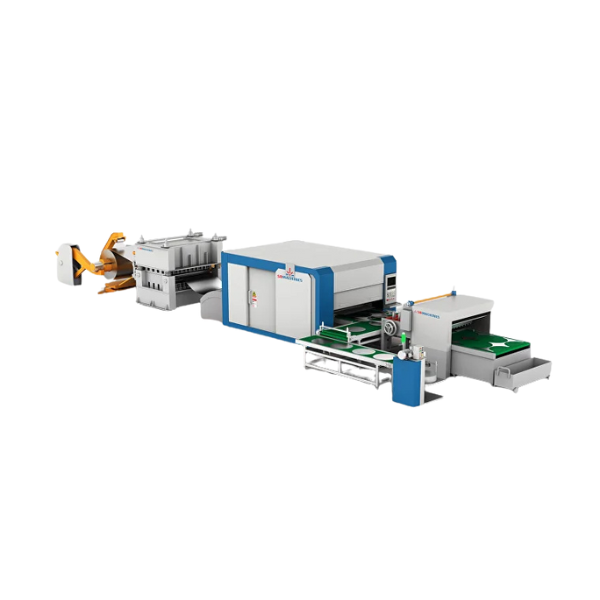

SU5 protects the underside of the strip, unloads parts on a belt and can cut while the strip is moving. Strip 300–2,100 mm, thickness 0.6–3 mm, laser 3–12 kW.
Specifications
| Coil and material | |
| Strip width | 300–2,100 mm |
| Strip thickness | 0.6–3 mm |
| Decoiler capacity (coil weight) | 10–30 t |
| Laser | |
| Laser power | 3–12 kW |
| Laser source and cutting head | Lasers: MAX, Raycus, IPG. Cutting heads: Raytools, Precitec. |
| Cutting heads | 1 cutting head on 1 gantry as standard; up to 8 gantries optional |
| Cutting | |
| Standard cutting zone | 1,500 × 3,000 mm |
| Strip during cutting | The strip can keep moving while it is cut |
How SU5 differs from the neighbouring series
SU5 is the series for strip 0.6–3 mm thick: it protects the underside surface, unloads parts on a belt and can cut while the strip is moving.
When to choose SU5
- The underside of the strip must be protected during cutting, and you want parts unloaded on a belt.
- You want the strip to keep moving while it is cut.

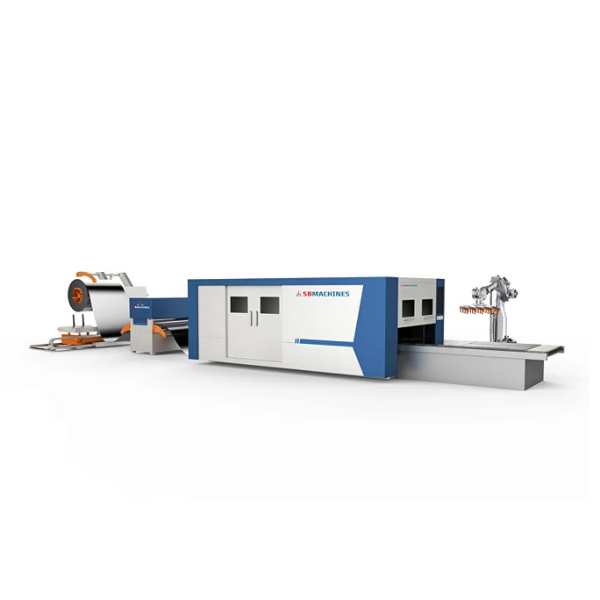

- Your metal is up to 3 mm thick. For thicker metal look at SU3Pro or SU4.
SU5: questions and answers
Can the SU5 cut while the strip is moving?
Yes. SU5 is the series where the strip can keep moving during cutting.
How does the SU5 unload parts?
On a belt. The SU5 also protects the underside surface of the strip.
What strip does the SU5 take?
Strip 300–2,100 mm wide and 0.6–3 mm thick, with a 3–12 kW laser. The decoiler takes coils from 10 to 30 t.
Operators, coil change time, unattended running, installation time, warranty and certification are the same for all four series, as are the standard equipment and the options. See the series comparison.
