| Item | SG 6025 – SG 26560 |
|---|---|
| Sheet size, mm | width range 2500 – 6000 mm (step 500mm), length 6000 – 26500mm (step 500mm) |
| X Y axis positioning speed,m/min | 100 |
| X Y max acceleration,G | 1 (option 1,4) |
| X Y positioning accuracy,mm/m | 0,05 |
| X Y re-positioning accuracy,mm | 0,03 |
| Laser source | IPG/Raycus/SBMachines 12 – 80 kW |
| Cutting gases | Air, N2, O2 |

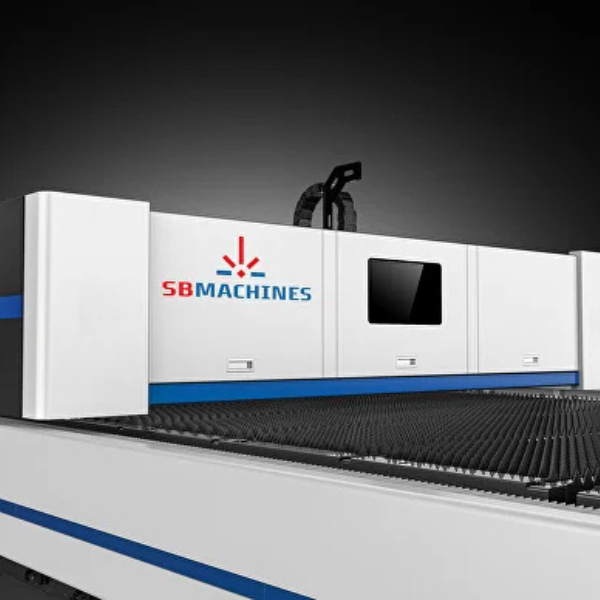

SG Series
High power huge size sheet single table laser cutting machine up to 120 kW up.
Get the benefits of high power cutting – reduce your cutting time and improve productivity.
High loading capacity separated working structure.
High precision parts: reducer, rack and pinion, linear guides.
High power drivers.
Intelligent process system, one button operation, improve processing efficiency.
Automatic edge finding, intelligent piercing, cutting detection, senseless cutting, obstacle avoidance.
Options: bevel head, dust removal module on crossbeam.
5-axis system realize bevel cutting such as V, X, Y and K shapes.
