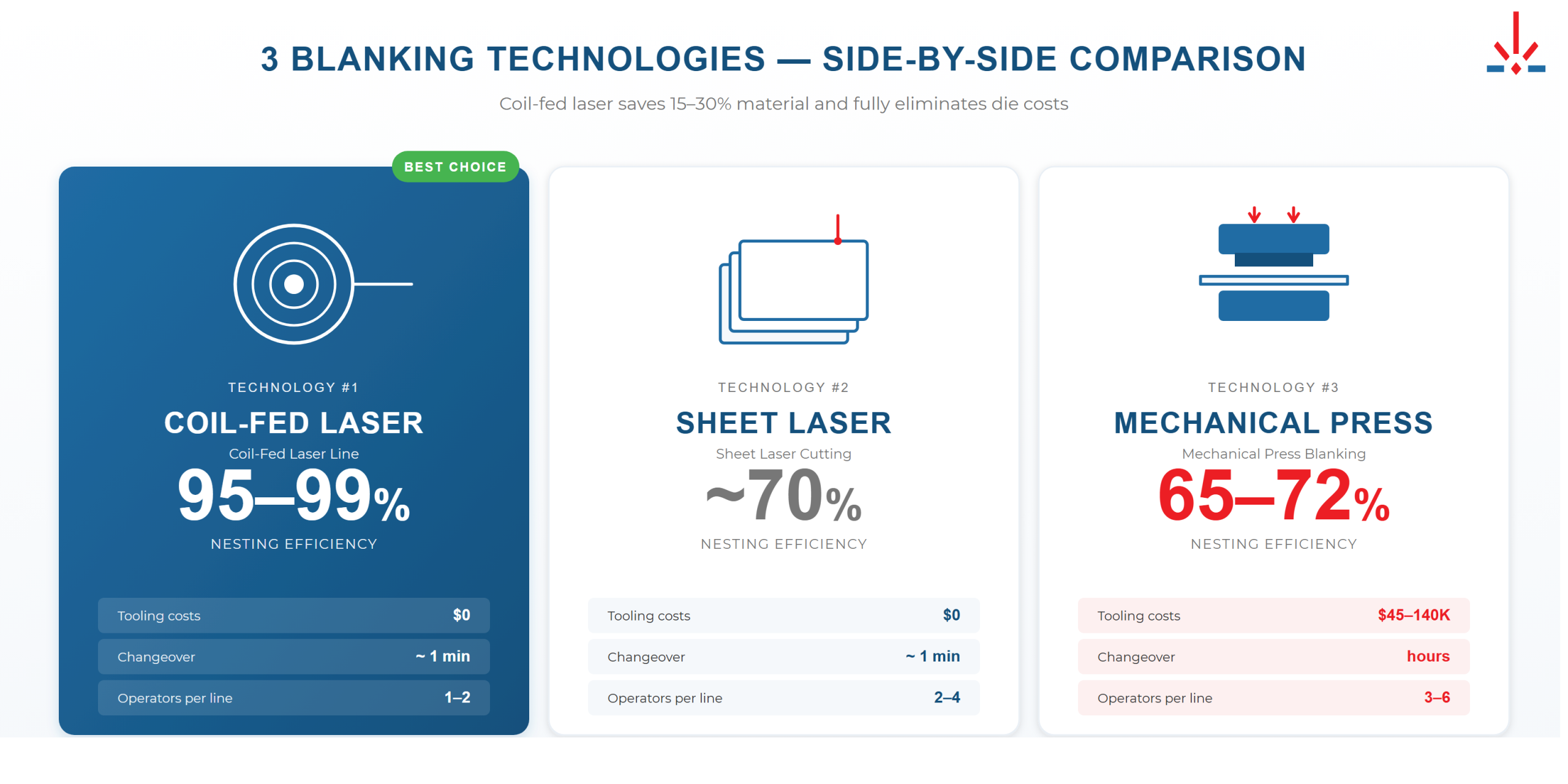

A coil-fed laser cutting line saves 15–30% on material compared to sheet laser and eliminates tooling costs entirely. Below is a side-by-side comparison of three blanking technologies across 10 key parameters with real calculations.
How Each Technology Works
Mechanical press stamps blanks using dedicated dies from pre-cut sheets or strip. One part contour requires one die set costing $45,000–140,000. Changeover takes hours. The technology is justified only for stable runs of hundreds of thousands of parts per year.
Sheet laser cutting machine cuts parts from standard sheets (typically 1,500 × 3,000 mm). No dies needed — the contour is defined by software. Limitation: each sheet must be loaded, processed, then the skeleton and parts must be unloaded. The cycle is intermittent.
Coil-fed laser cutting line cuts blanks directly from the coil. The coil is unwound, the strip is leveled, the laser cuts the contour, scrap is removed, and finished parts are stacked automatically. The process is continuous — the only stop is coil changeover.

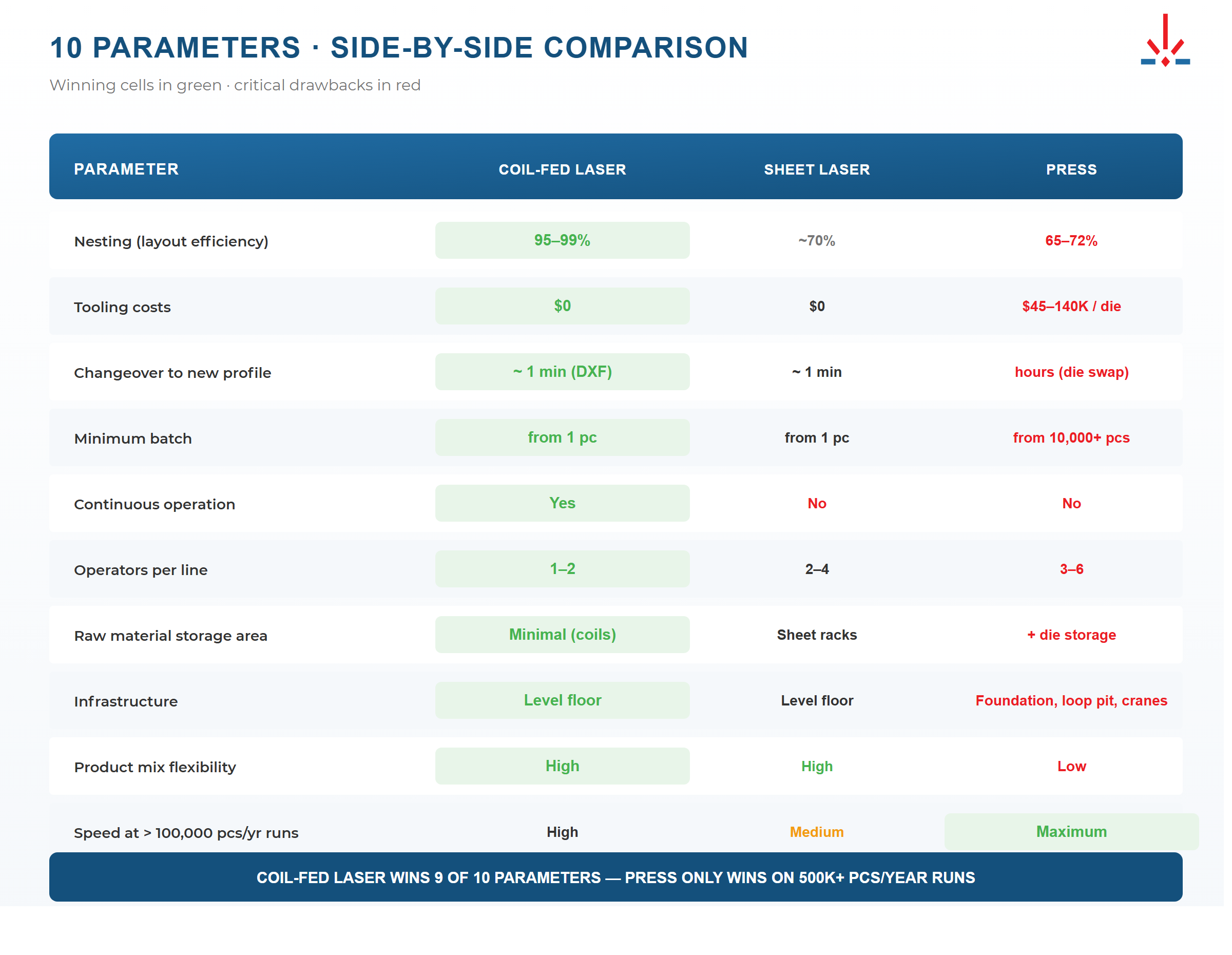

Key Parameter Comparison
| Parameter | Coil-Fed Laser Line | Sheet Laser | Mechanical Press |
|---|---|---|---|
| Nesting efficiency | 95–99% | ~70% | 65–72% |
| Tooling cost | $0 | $0 | $45,000–140,000 per die set |
| Changeover to new contour | ~1 min (load DXF) | ~1 min | Hours (die change) |
| Minimum batch size | From 1 pc. | From 1 pc. | 10,000+ pcs. |
| Continuous operation | Yes (stop only for coil change) | No (sheet load/unload) | No (die changes) |
| Operators per line | 1–2 | 2–4 (without automation) | 3–6 |
| Raw material storage | Minimal (coils) | Large (sheet racks) | Large + die storage |
| Infrastructure | Flat floor | Flat floor | Foundation, loop pit, cranes |
| Product mix flexibility | High | High | Low |
| Speed at >100,000 pcs./year | High | Medium | Maximum |

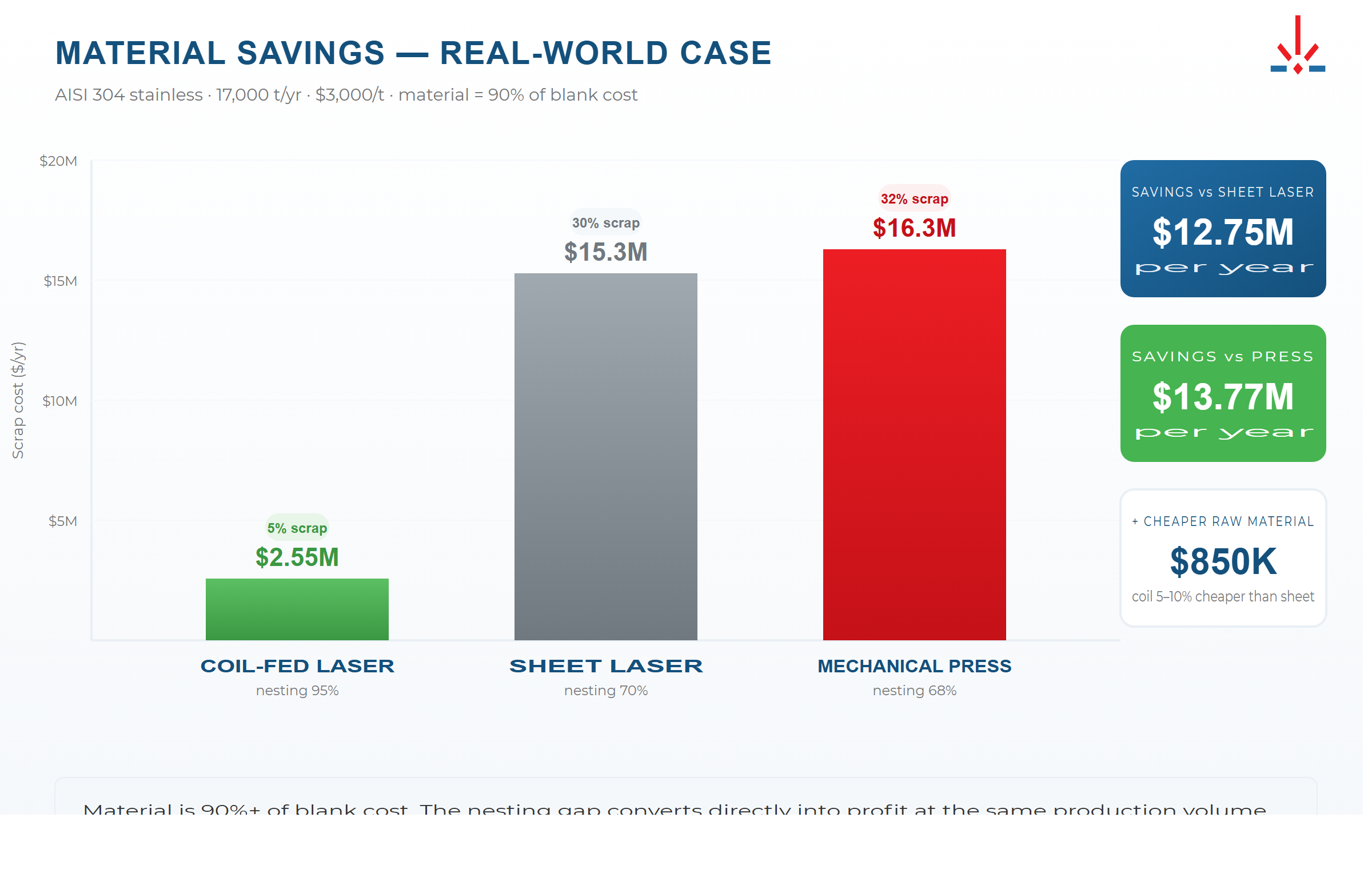

Material Savings: Where the Real Money Is
Material accounts for over 90% of blank cost. The nesting difference directly determines profitability.
Calculation: AISI 304 stainless steel, 17,000 t/year
| Metric | Coil-Fed Laser Line | Sheet Laser | Press |
|---|---|---|---|
| Nesting | 95% | 70% | 68% |
| Scrap | 5% = 850 t | 30% = 5,100 t | 32% = 5,440 t |
| Scrap cost (at $3,000/t) | $2.55M | $15.3M | $16.3M |
| Savings vs sheet laser | $12.75M/year | — | — |
| Savings vs press | $13.77M/year | — | — |
Additionally, coil steel is 5–10% cheaper than sheet (no intermediate slitting at the service center). At 17,000 t/year, that adds $850,000 in savings.
Ready to Cut Costs and Boost Efficiency?

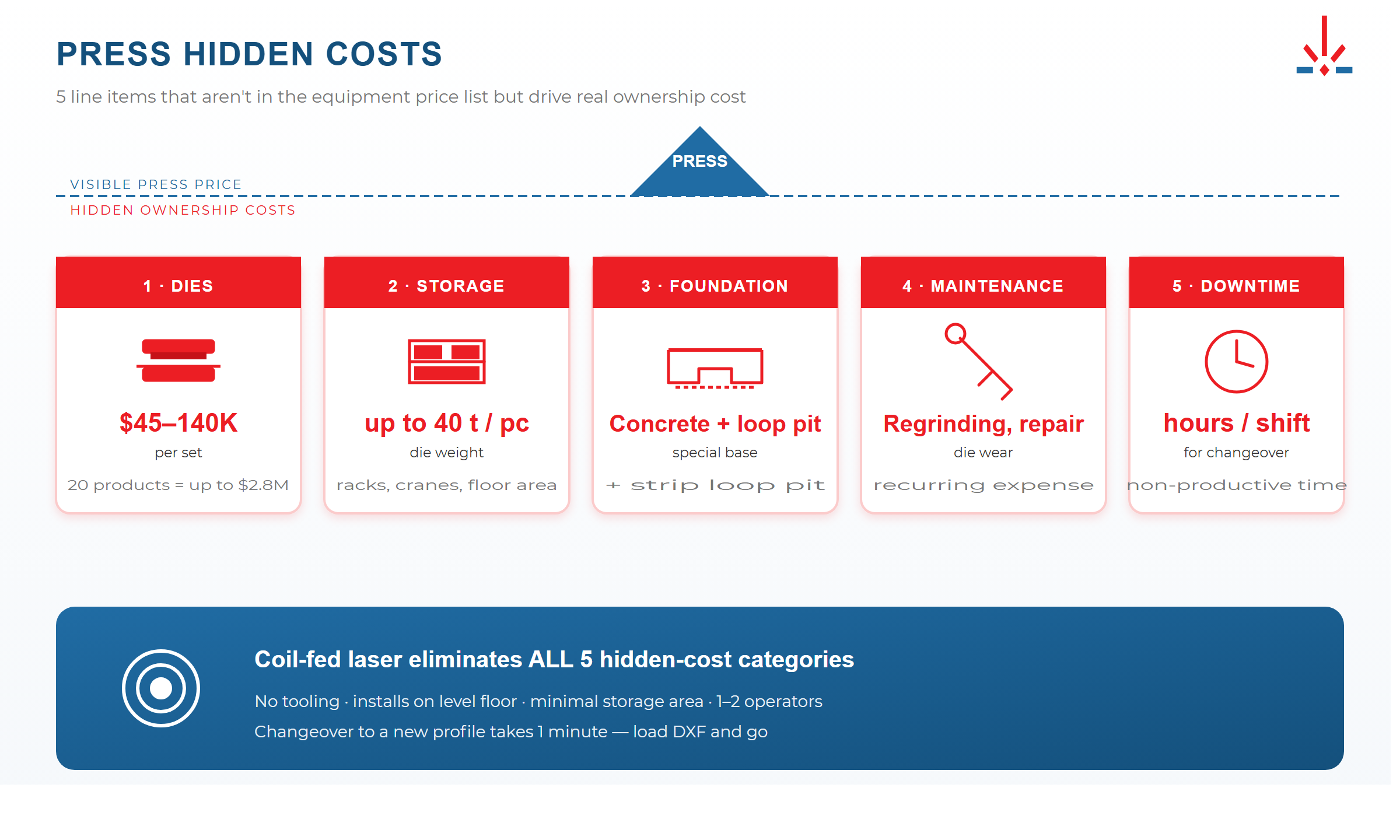

Hidden Costs of a Press
Total cost of ownership for a press goes far beyond the equipment price:
- Dies: $45,000–140,000 per set. 20 products = up to $2.8M in tooling alone
- Die storage: up to 40 t each — requires racking, cranes, floor space
- Foundation and pit: press requires a dedicated foundation and loop pit
- Die maintenance: resharpening, repair, replacement
- Changeover downtime: every product change means hours of non-productive time
A coil-fed laser line eliminates all of these costs. Installation is on flat floor, no foundation required.
When a Press Still Makes Sense
A press wins in one scenario: stable production of a single part at 500,000+ pcs./year with a confirmed long-term contract. High stroke rates (up to 60 strokes/min) justify die investments.
However, if:
- Volume is unconfirmed at launch
- Product mix changes more than once per quarter
- Multiple parts need to run on one line
- Product lifecycle is under 3 years
— a coil-fed laser line reduces financial risk and delivers flexibility.

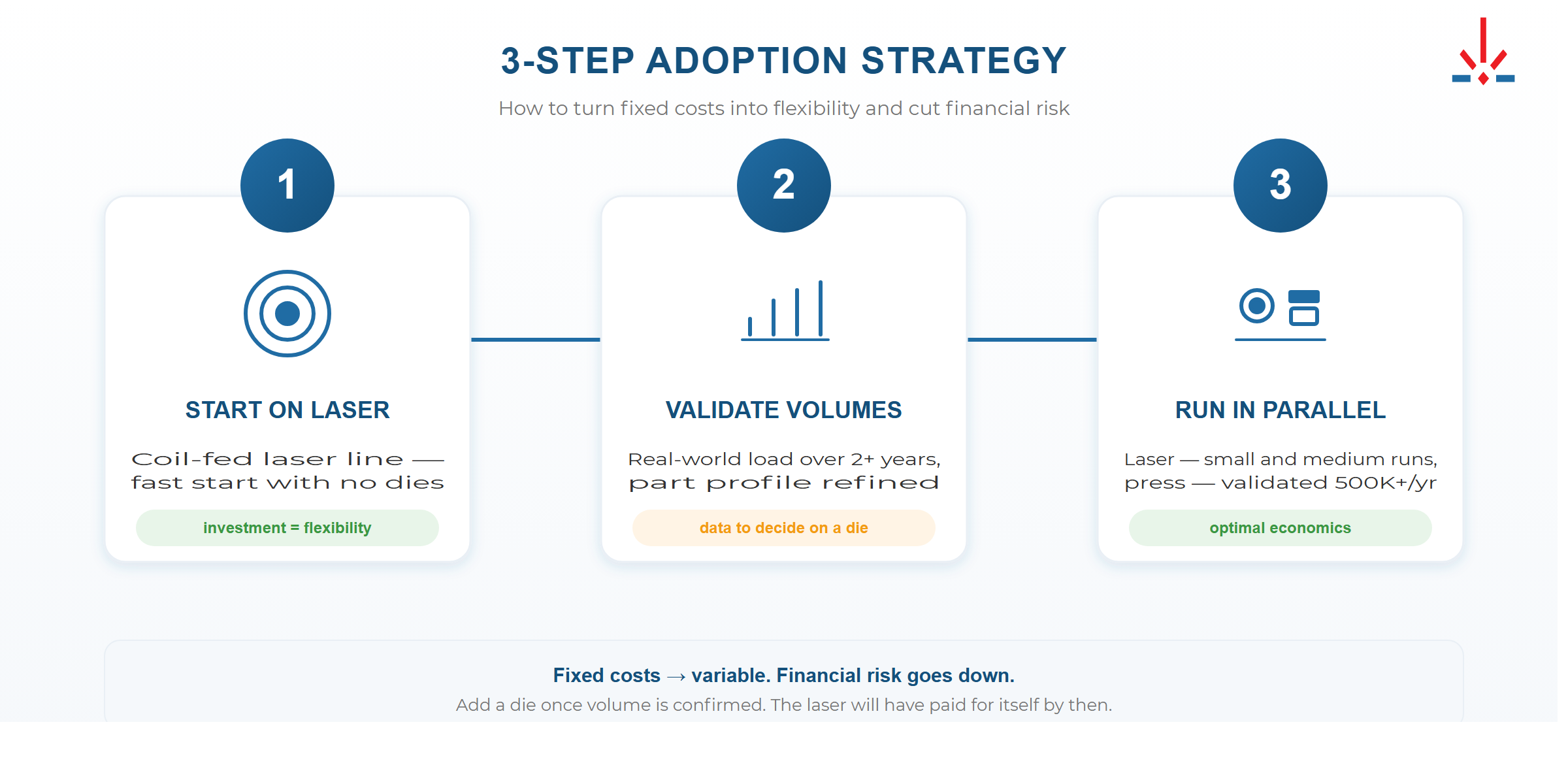

Implementation Strategy: Laser First, Press Later
The optimal approach for a new product:
- Start on a coil-fed laser line — validate real volumes, finalize contours
- Scale up — if volume is confirmed and stable for 2+ years, consider a die
- Run in parallel — laser handles small and medium runs, press handles mass production
Laser technology converts fixed costs (dies, infrastructure) into variable costs (power, gas) and lowers the entry barrier.
Which SBMachines Series Fits Your Needs
| Your task | Recommended series |
|---|---|
| Thin material up to 2 mm, coil laser entry point | SU3E — entry level, strip width up to 1,500 mm |
| Full material range up to 20 mm | SU3Pro — fully automated line, up to 60 kW |
| Maximum throughput for serial production | SU4 — 2 to 8 cutting heads |
| Minimal waste, zero-waste applications | SU5 — optimized for 99% nesting |
FAQ
Q: Can a coil-fed laser line cut thick material?
A: Yes. The SU3Pro and SU4 series cut up to 20 mm at up to 60 kW laser power.
Q: What is the maximum coil width?
A: Up to 3,000 mm (SU3Pro and SU4 series). For entry-level applications, the SU3E handles widths up to 1,500 mm.
Q: How many operators are required?
A: 1–2 operators per line. The process is automated from decoiling to stacking.
Q: What is the typical payback period?
A: At high volumes (8 coils/day), under 6 months. Typical payback is 6–12 months depending on utilization and material cost.
Q: Can different materials run on the same line?
A: Yes. Carbon steel, stainless steel, aluminum, galvanized sheet, and advanced high-strength steels (AHSS/UHSS up to 1,200 MPa). Switching materials means changing the coil — no additional setup required.
